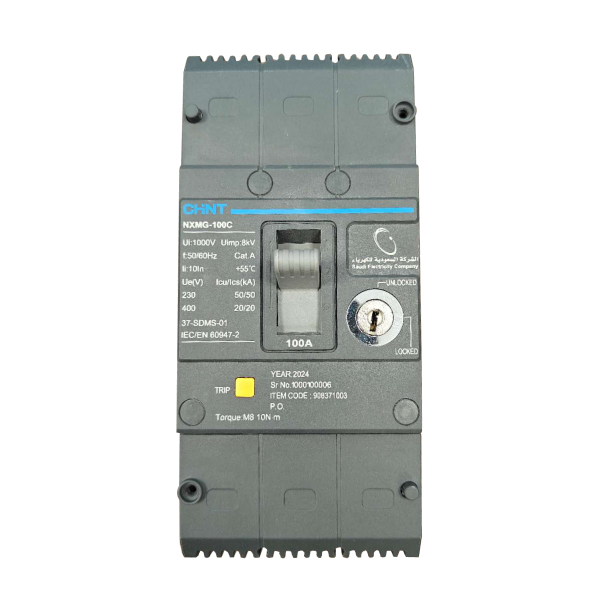

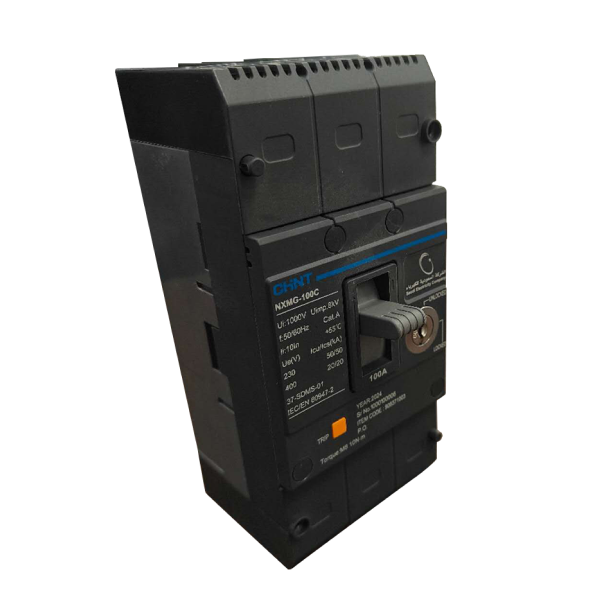

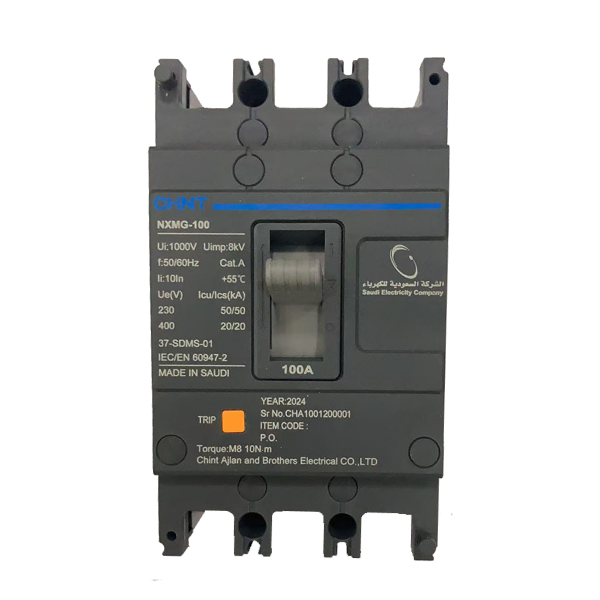

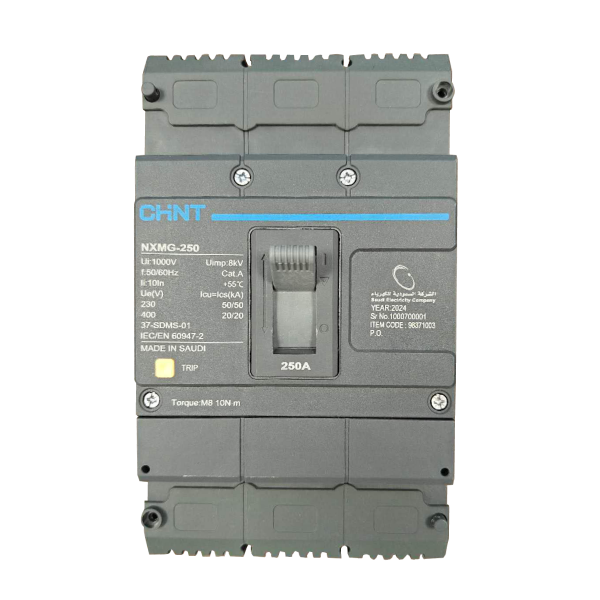

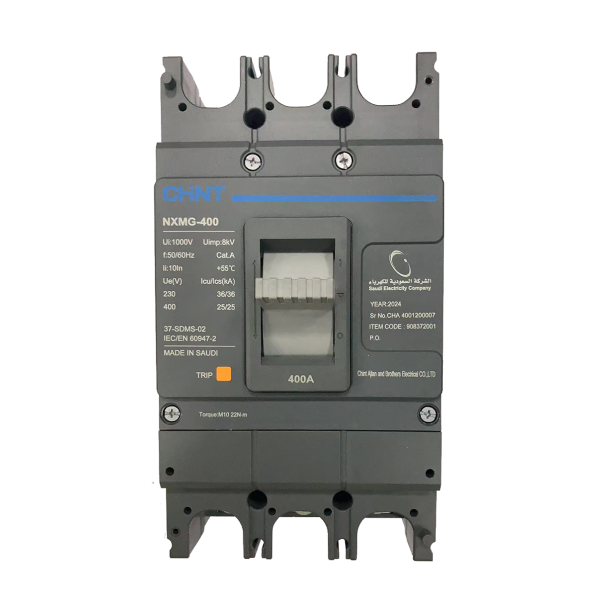

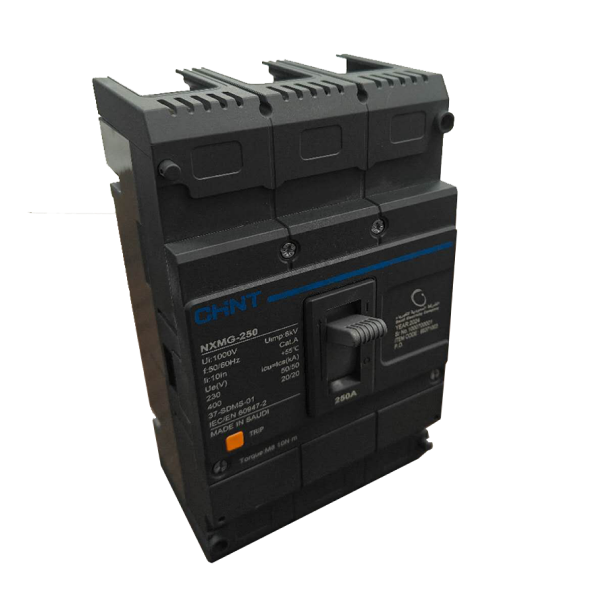

NXMG moulded case circuit breaker

NXMG moulded case circuit breaker

1.1 With rated operational voltage up to 400V, rated current up to 600A,NXMG series moulded case circuit breaker is mainly used in the distribution network with the circuit of AC 50HZ/60HZ to distribute electric energy and protect circuits and power equipment from overload and short circuit, etc. Circuit breakers of 250A and below can also be used as infrequent starting and overload and short circuit protection of the motor.

1.2 The NXMG molded case circuit breaker developed for the Saudi market is equipped with cage terminal blocks, which is available for two modes of upper and lower down-lead, to make it easier for users to connect. The test tripping button is added on the basis of the locking system, with the cover, lead-sealing device and exposed screw insulation plug equipped as standard, to greatly improve product safety

1.3 Standard：IEC 60947-2,37-SDMS-01,37-SDMS-02,37-SDMS03

Product Information

1.1 With rated operational voltage up to 400V, rated current up to 600A,NXMG series moulded case circuit breaker is mainly used in the distribution network with the circuit of AC 50HZ/60HZ to distribute electric energy and protect circuits and power equipment from overload and short circuit, etc. Circuit breakers of 250A and below can also be used as infrequent starting and overload and short circuit protection of the motor.

1.2 The NXMG molded case circuit breaker developed for the Saudi market is equipped with cage terminal blocks, which is available for two modes of upper and lower down-lead, to make it easier for users to connect. The test tripping button is added on the basis of the locking system, with the cover, lead-sealing device and exposed screw insulation plug equipped as standard, to greatly improve product safety

1.3 Standard：IEC 60947-2,37-SDMS-01,37-SDMS-02,37-SDMS03

Name

Size

Release time

Operate

NXMG-MCCB-Catalog.PDF

652.21KB

2025-04-28

Download

Name

Size

Release time

Operate

NXMG NM5G-MCCB-Manual.pdf

5.06MB

2025-04-28

Download

Name

Size

Release time

Operate

NXMG-100C-MCCB-Drawing.stp

15.59MB

2025-04-28

Download
